Product Description

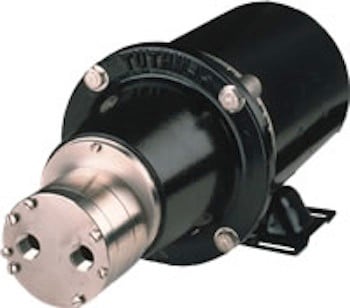

The Tuthill T Series magnetically coupled construction requires no packing or mechanical seals. This also means there are no diaphragms or plastic tubes to rupture, making them leak free.
The external gear design offers flow that is relatively independent of pressure providing constant fluid delivery with no pulsations and controlled volume that is accurate and repeatable, making it highly suitable for metering applications. And it can meet these demands in circumstances with high differential pressures and high system pressures, as well as thin to moderate viscosity fluids.
Quality 316 stainless steel, Hastelloy, titanium, or engineered plastics construction with engineered plastic gears and bearings provides excellent resistance to chemicals and corrosive fluids. These features provide long life and, combined with efficient modular design, offer low maintenance and easy low-cost installation and start-up.
Product Features
- External Gear design
- Flow rates from 5 to 650 gph (2460 L/hr)
- Differential pressures to 250 psi (17.2 bar)
- Temperatures to 350ºF (176ºC)
- Viscosity: 0.3 cps to over 10,000 cps
- ATEX approved
- 316 Stainless Steel or Hastelloy
- System Pressures to 500psi (34.5bar)
Product Applications
- Laboratory
- Water Purification
- Lubrication
- Fluid Transfer
- Recirculation
- Cooling
- Chemical Metering
- Sampling
- Temperature Control
- Medical
- Additive Delivery
- Proportioning
- Chemical Handling
- Refrigerant Recycling
- Lasers
- Oil Filtration
