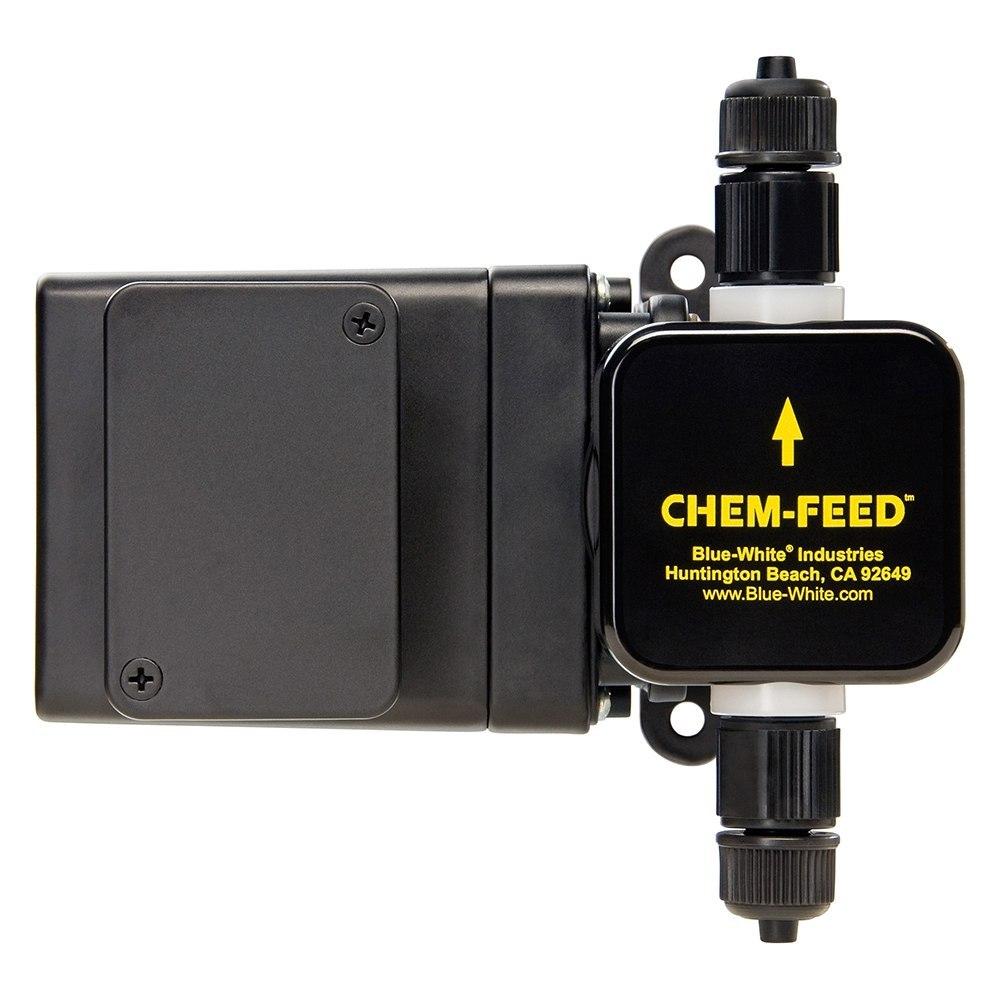

Blue-White C-600P CHEM-FEED® Diaphragm Metering Pump
Model #: 999-199-101
*Prices are subject to change without notice
The CHEM-FEED® C-600P Diaphragm Metering Pump is a simple and economical solution to a wide range of commercial and industrial fluid process applications. This compact pump features an all-ball bearing, permanently lubricated gear motor for smooth, powerful, and quiet operation. Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute.
- GPH: 1 - 21.5
- LPH: 4 - 81.4
- PSI: 125
- Bar: 8.6
- Enclosure Rating: NEMA 1 (IP20)
- Standards: NSF/ANSI 61, CE, cETLus, UL, CSA, RoHS
- Control Methods: Manual
- Power Supply: 100 to 240VAC-50/60Hz
Standard delivery is 1-2 weeks but typically will ship sooner.
- All ball bearing, permanently lubricated gear motor for smooth, quiet, powerful operation.
- Double-ball inlet and outlet cartridge type ceramic check valves. Chemical resistant PVDF pump head, valve body and fittings, ceramic balls, FKM static seals and TFE/P ball seat orings. No metal springs are used.
- Outputs to 516 GPD.
- Output pressures to 125 PSI.
- Stroke adjustment from 4-100% permits accurate small injections at a high rate per minute. 27:1 turndown
- PTFE coated Ethylene Propylene diaphragm can handle a wide variety of applications.
- Durable metal epoxy coated construction.
- PVDF suction (foot) valve with FKM and TFE/P o-rings, ceramic check ball and removable polypropylene filter screen.
- Includes 3/8” OD x 1/4” ID suction and discharge tubing, Injection fitting with spring-loaded check valve and all mounting hardware.
- C-600P Diaphragm Metering Pump
- Discharge injection fitting with check valve
- Suction tube – clear PVC – 5′ length (3/8″ OD, 1/4″ ID)
- Suction foot valve / strainer
- Suction ceramic weight
- Discharge tube – opaque polyethylene – 5′ length (3/8″ OD, 1/4″ ID)
- Mounting hardware kit
Maximum Working Pressure
Maximum Fluid Temperature
Maximum Ambient Temperature
Maximum Suction Lift
115VAC/60Hz, 1ph (.74 Amp Maximum)
230VAC/60Hz, 1ph (.36 Amp Maximum)
220VAC/50Hz, 1ph (.31 Amp Maximum)
24VAC/60Hz, 1ph (3.40 Amp Maximum)
12VAC/60Hz, 1ph (3.00 Amp Maximum)
24VAC/50Hz, 1ph (1.50 Amp Maximum)
Output Adjustment Range
Approximate shipping wt
- Boiler Water Treatment
- Cooling Tower Water Treatment
- Food & Beverage
- Industrial Water and Wastewater
- Oil and Gas
- Pulp and Paper
