Product Description

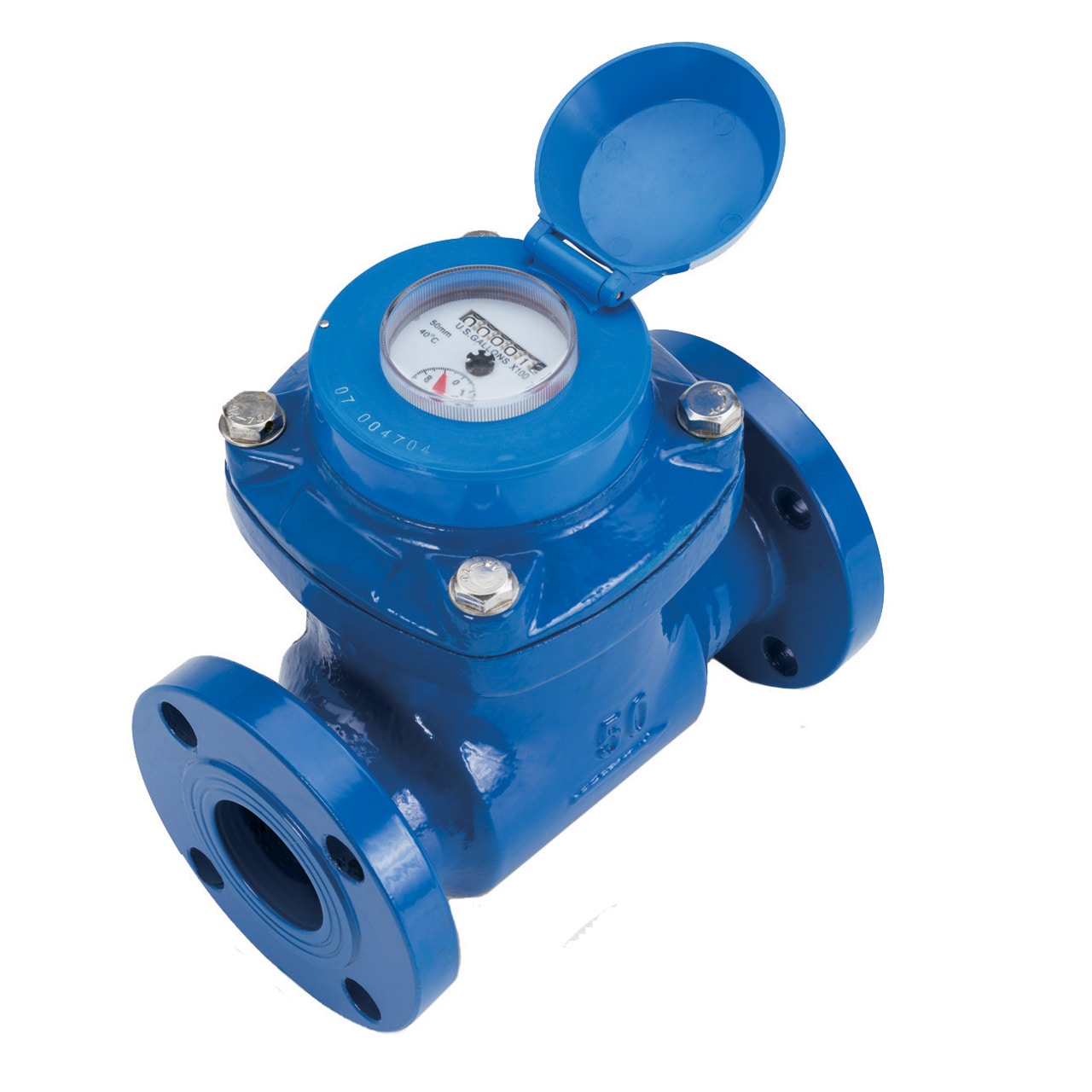

WJ-Series turbine meters are dry-register mechanical totalizers that offer accurate, economical reading of high flows with low pressure loss. The horizontal-axis turbine drives a vertical shaft, which is magnetically coupled to the sealed register.
Product Features
- Dry-register mechanical turbine flow meter with cast iron body in sizes 2″ to 8″
- Suited for water treatment, remote totalizing, pacing electronic metering pumps
- Mechanical register requires no electrical power
- Compact-length flow meter with standard ANSI flanges
- Inexpensive reed switch pulser can be factory-installed or field-retrofitted
Product Applications
- Remote Totalizing
- Pacing Electronic Metering Pumps
- Cooling Water Monitoring
- Industrial Fluid Control
- Water / Wastewater Treatment
